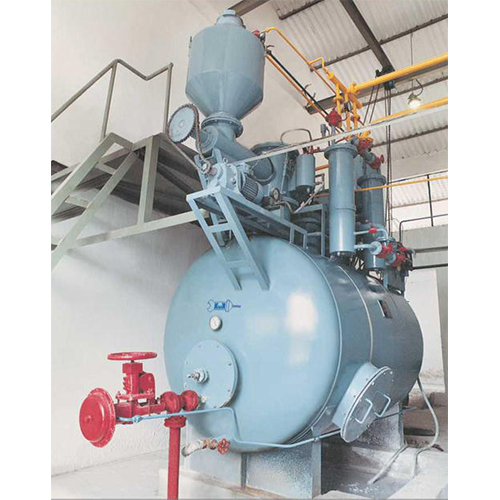

Dissolved Acetylene Semi-Automatic Gas Plant

BIS Specifications

A) Acetylene Generator

IS 8471 (PT -4) 1977

B) Flame Proof Motors

IS 2148 (Group II-B) -1968

Statutory requirement of distance as per Explosive Dept.

Acetylene Plant and Carbide go down Should be: 9 meters from time pits. 15 meters from public road. 15 meters from Electricity room. 30 meters from any other bldg 90 meters !tom Oxygen Plant Air intake point Acetone go down of 2,500 Litres capacity should be 6 Meters from any other premises.

Power Supply

440 Volts/ 3 phase/50 hertz. (If your supply is different from this please specify.)

Specifications

45 M3 / Hr. Acetylene Plant

100 M3/Hr. Acetylene Plant

Capacity

45 M3/Hr. Of Acetylene

100 M3/Hr. Acetylene

Cylinder filled per batch

60 Cylinders

120 Cylinders

Carbide size

15-25 mm Grade 'B'

4.25 / 15.5 mm

Hopper Capacity

200 kgs

300 kgs

Carbide requirement per batch

1,200 kgs approx. (depending on Carbide quantity )

2,700 kgs approx. (depending on Carbide quantity )

Power requirement

18 KW

30 KW

Start up time

15 minutes approx.

15 minutes
